    Double Sheath Kevlar Yarn Reinforced Adss Fiber Optic Cable Manufacturer

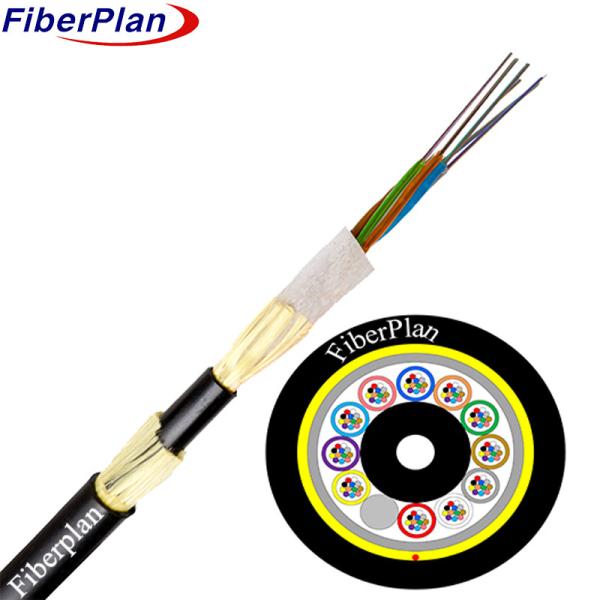

    Double Sheath Kevlar Yarn Reinforced ADSS Fiber Optic Cable


    Description

    The ADSS (All-Dielectric Self-Supporting) cable is designed with a loose tube stranding structure to ensure

    optimal performance and durability. The fibers are securely housed in high modulus plastic tubes filled with

    a water-resistant compound, effectively protecting them from moisture. These tubes, along with fillers, are

    stranded around a central strength member made of non-metallic FRP (Fiber Reinforced Plastic), forming

    a compact and circular cable core.

    To further enhance protection, the core is filled with a filling compound and encased in a thin polyethylene

    (PE) inner sheath. For additional reinforcement, a stranded layer of aramid yarns is applied over this inner

    sheath. Finally, the cable is finished with an outer sheath, which can be either polyethylene (PE) for

    standard applications or anti-tracking (AT) for environments with high electrical stress.

    This robust construction ensures that the ADSS cable is highly durable, moisture-resistant, and capable of

    withstanding various environmental conditions. This makes it ideal for both aerial and underground installations,

    providing reliable performance in a range of applications.


    Application

    1. The ADSS cable design considers the real-time conditions of overhead power lines, ensuring optimal

    performance and durability in such environments.

    2. A PE outer sheath is used for power lines below 110kV, while an AT outer sheath is employed

    for power lines operating at 110kV and above to provide enhanced protection.

    3. The specific design, including the quantity of aramid yarn and the stranding process, is tailored to meet

    varying span requirements effectively, ensuring that the cable performs reliably across different installation

    scenarios.


    Characteristics

    1. Enables installation without the need for a power shutdown, minimizing service disruptions during

    deployment.

    2. Lightweight and compact diameter reduce strain from ice, wind, tower, and backprop loads, thereby

    enhancing the cable's durability and overall performance.

    3. Engineered for a 30-year lifespan, ensuring long-term reliability and cost-effectiveness in infrastructure

    projects.

    4. Demonstrates robust tensile strength and temperature resilience, guaranteeing consistent performance

    across diverse environmental conditions.


    Cable construction details

    Number of fiber24-144 core
    Filling rope2.0mm
    Moisture BarrierWater blocking system
    Central strength membermaterialFRP/FRP with PE
    size2.1mm
    Tube-fillingTube filling compound
    fillerPP tube/ PVC tube
    Inner sheathmaterialPE
    Loose tubematerialPBT
    diameterФ2.2mm(outer/inner)
    Outer sheathmaterialPE/HDPE
    diameter11±0.2mm

    Fiber color

    Number of fiber 8

    cores per tube

    123456
    BlueOrangeGreenBrownGreyWhite
    789101112
    RedBlackYellowVioletPinkAqua
    Color 13~24 will be marked with a black tracer. For black color no need marked black tracer, will use nature color instead.

    Cable Mechanical characteristic

    coreCable diameterWeight
    2 core to 60core12±0.2mm140±3kg/km
    72core13±0.2mm190±3kg/km
    96core14.5±0.2mm220±3kg/km
    144core16.5±0.2mm240±3kg/km
    Rec.daily max working tension88kN
    Max. Allowable working tension32.7KN
    Modulus of elasticity37KN/mm2
    Min Bending Radius(mm)Operation240mm
    Installation390mm
    Extra loadExtra load 0.5% ~ 0.7%
    Ice5mm
    Wind speed35m/s

    Fiber characteristic

    Fiber styleUnitSM
    G652
    SM
    G652D
    MM
    50/125
    MM
    62.5/125
    MM
    OM3-300
    conditionnm1310/15501310/1550850/1300850/1300850/1300
    attenuationdB/km≤3.0/1.0≤3.0/1.0
    0.36/0.230.34/0.223.0/1.0--------
    Dispresion1550nmPs/(nm*km)----≤18--------Dispresion
    1625nmPs/(nm*km)----≤22--------
    Bandwith850nmMHZ.KM--------≧400≧160Bandwith
    1300nmMHZ.KM--------≧800≧500
    Zero dispersion wavelengthnm1300-1324≧1302,
    ≤1322
    --------≧ 1295,
    ≤1320
    Zero dispresion slopenm≤0.092≤0.091------------
    PMD Maximum Individual Fibr ≤0.2≤0.2--------≤0.11
    PMD Design Link ValuePs(nm2*k
    m)
    ≤0.12≤0.08------------
    Fibre cutoff wavelength λcnm≧ 1180,
    ≤1330
    ≧1180,
    ≤1330
    ------------
    Cable sutoff
    wavelength λcc
    nm≤1260≤1260------------
    MFD1310nmum9.2±0.49.2±0.4------------
    1550nmum10.4±0.810.4±0.8------------
    Numerical
    Aperture(NA)
     --------0.200±0.0150.275±0.
    015
    0.200±0
    .015
    Step(mean of bidirectional
    measurement)
    dB≤0.05≤0.05≤0.10≤0.10≤0.10
    Irregularities over fiber
    length and point
    dB≤0.05≤0.05≤0.10≤0.10≤0.10
    Dicontinuity
    Difference backscatter
    coefficient
    dB/km≤0.05≤0.03≤0.08≤0.10≤0.08
    Attenuation uniformitydB/km≤0.01≤0.01
    Core dimaterum  50±1.062.5±2.550±1.0
    Cladding diameterum125.0±0.1125.0±0.1125.0±0.1125.0±0.1125.0±0.1
    Cladding non-circularity%≤1.0≤1.0≤1.0≤1.0≤1.0
    Coating diameterum242±7242±7242±7242±7242±7
    Coating/chaffinch
    concentrically error
    um≤12.0≤12.0≤12.0≤12.0≤12.0
    Coating non circularity%≤6.0≤6.0≤6.0≤6.0≤6.0
    Core/cladding conentricity errorum≤0.6≤0.6≤1.5≤1.5≤1.5
    Curl(radius)um≤4≤4------------
