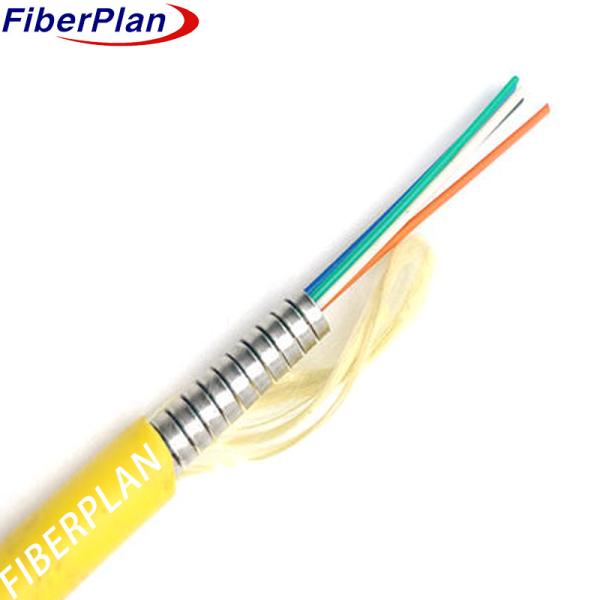

2 Core Spiral Steel Armored Indoor Buy Fiber Optic Cable
Description
- These cables are available in fiber diameters of Φ900μm or Φ600μm,
offering the flexibility
to meet diverse installation requirements and ensuring suitability
for a wide range of applications.
- Equipped with spiral steel armor, these cables provide robust
protection against physical
stress and potential damage. This essential feature preserves the
integrity of the fibers, particularly
in demanding environments.
- Incorporating two layers of Kevlar yarn, these cables significantly
boost tensile strength and
resilience. This construction allows the cables to withstand harsh
environments and mechanical strain,
ensuring long-term reliability and optimal performance.
- Designed specifically for vertical riser applications, the OFNR
jacket ensures flame resistance
and prevents the spread of fire between floors. It is ideal for
high-rise buildings and other vertical
installations.
- PVC jackets are known for their flexibility, ease of installation,
and cost-effectiveness. Suitable
for a wide range of applications, they offer a balanced combination
of performance and affordability,
making them versatile for various environments.
- LSZH jackets prioritize fire safety by emitting minimal smoke and
containing no halogen content,
making them perfect for enclosed or high-density spaces. These
jackets are particularly suitable for
environments where safety and low toxicity are paramount, such as
public buildings and areas with
high human occupancy.
Applications
- Designed for both indoor and outdoor use, these cables are suitable
for a wide range of distribution
scenarios. They are built to withstand various environmental
conditions, providing reliable performance and
ensuring uninterrupted connectivity in any setting.
- These cables are primarily used in the creation of pigtails and
patch cords, which are crucial for
connecting optical fibers to equipment. They ensure stable and
efficient connections, vital for the
seamless operation of optical networks and smooth data
transmission.
- Employed in optical communication equipment rooms and distribution
frames, these cables offer
efficient and organized cabling solutions. They help maintain the
integrity and performance of the optical
network infrastructure, ensuring optimal functionality.
- These cables are utilized for optical connections in various
apparatus and equipment scenarios.
They deliver consistent and dependable connectivity, ensuring that
diverse optical communication
systems operate smoothly and efficiently, whether in specialized
equipment or general applications.
Characteristics
- These cables are engineered to offer exceptional mechanical and
environmental properties,
ensuring durability and reliability in various conditions. They are
specifically designed to withstand
physical stresses and harsh environments, delivering long-lasting
performance even in challenging
situations.
- Complying with relevant flame retardant standards, these cables
prioritize safety in critical
environments. In the event of a fire, they help prevent the spread
of flames, protecting both
equipment and personnel from potential harm.
- The mechanical attributes of these cables are meticulously aligned
with specified standards,
guaranteeing consistent and reliable performance. This adherence
assures users that the cables
will function as expected, even in the most demanding applications,
without compromising on quality.
- Featuring a soft and flexible design, these cables facilitate easy
splicing and accommodate
large-capacity data transmission without compromising integrity.
Their flexibility simplifies installation
and maintenance, making them a practical choice for various
applications.
- Designed to meet diverse market and client requirements, these
cables provide adaptable
and customizable solutions. Whether for specific industry needs or
custom installations, they
can be tailored to meet unique demands, ensuring broad
applicability and suitability across
different sectors.
Cable construction details
| Technical Parameters: |
| Out Diameter(MM) | 2.0 | Weight(KG) | 15.0 |
| 2.8 | 18.0 |
| 3.0 | 18.0 |
| Storage temperature(℃) | -20 ~ +60 |
| Min Bending Radius(mm) | Long term | 10D |
| Min Bending Radius(mm) | Short term | 20D |
| Min allowable Tensile Strength(N) | Long term | 300 |
| Min allowable Tensile Strength(N) | Short term | 1000 |
| Crush Load (N/100mm) | Long term | 500 |
| Crush Load (N/100mm) | short term | 1000 |
Fiber characteristic
| Fiber style | Unit | SM
G652 | SM
G652D | MM
50/125 | MM
62.5/125 | MM
OM3-300 |
| condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 |
| attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 |
| 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- |
| Dispresion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispresion |
| 1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | |
| Bandwith | 850nm | MHZ.KM | ---- | ---- | ≧400 | ≧160 | Bandwith |
| 1300nm | MHZ.KM | ---- | ---- | ≧800 | ≧500 | |
| Zero dispersion wavelength | nm | 1300-1324 | ≧1302,
≤1322 | ---- | ---- | ≧ 1295,
≤1320 |
| Zero dispresion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- |
| PMD Maximum Individual Fibr | | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 |
| PMD Design Link Value | Ps(nm2*km) | ≤0.12 | ≤0.08 | ---- | ---- | ---- |
| Fibre cutoff wavelength λc | nm | ≧ 1180,
≤1330 | ≧1180,
≤1330 | ---- | ---- | ---- |
| Cable sutoff wavelength λcc | nm | ≤1260 | ≤1260 | ---- | ---- | ---- |
| MFD | 1310nm | um | 9.2+/-0.4 | 9.2+/-0.4 | ---- | ---- | ---- |
| 1550nm | um | 10.4+/-0.8 | 10.4+/-0.8 | ---- | ---- | ---- |
Numerical
Aperture(NA) | | ---- | ---- | 0.200+/
-0.015 | 0.275+/-0.
015 | 0.200+/-0
.015 |
Step(mean of bidirectional
measurement) | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 |
Irregularities over fiber
length and point | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 |
| Dicontinuity |
Difference backscatter
coefficient | dB/km | ≤0.05 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | | | |
| Core dimater | um | | | 50+/-0.9 | 62.5+/-2.4 | 50+/-0.8 |
| Cladding diameter | um | 125.0+/-0.2 | 125.0+/-0.2 | 125.0+/-0.2 | 125.0+/-0.3 | 125.0+/-0.3 |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | um | 242+/-5 | 242+/-5 | 242+/-6 | 242+/-6 | 242+/-5 |
Coating/chaffinch
concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 |
| Core/cladding conentricity error | um | ≤0.5 | ≤0.5 | ≤1.3 | ≤1.3 | ≤1.3 |
| Curl(radius) | um | ≤4 | ≤4 | ---- | ---- | ---- |
