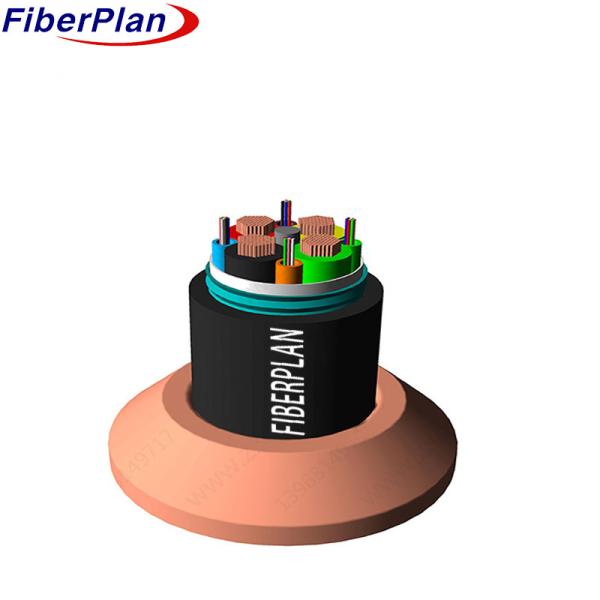

Parallel Steel Wire Strengthen Composite Fiber Optic Cable
Description
The Photoelectric Composite Fiber Optic Cable, also known as a
Hybrid Fiber Optic Cable,
integrates both fiber and power transmission functionalities into a
single unit. This integration
eliminates the need for secondary wiring, resulting in cost savings
in construction and network
deployment.
GDVV's design combines optical transmission with power copper
cable, addressing challenges
related to broadband access, equipment power supply, and the
transparent transmission of
electricity meter data.
This solution enables efficient monitoring and billing of
electricity consumption, providing a
comprehensive and streamlined approach to cable infrastructure
management.
Application
1.Tailored for Outdoor Distribution:Designed to withstand harsh
outdoor conditions, this cable
ensures longevity and reliability in challenging environments.
2.Suitable for Trunk Power Transmission Systems:Well-suited for
efficient long-distance power
transmission, making it an ideal choice for trunk power systems.
3.Ideal for Security Monitoring Projects:Specifically engineered
for security monitoring applications,
ensuring dependable connectivity and data transmission in
surveillance projects.
Characteristics
Composite Cable for Electricity and Signal Transmission: Simplifies
centralized monitoring and
maintenance, optimizing equipment power management.
Minimization of Power Supply Coordination and Maintenance:
Streamlines power supply system
management, reducing complexities and efforts associated with
coordination and maintenance.
Superior Ultraviolet Protection with PE Sheath: Offers excellent UV
protection with its PE sheath,
ensuring the cable's durability in outdoor settings.
Structure details
| SM fiber | G652D |
| Fiber type | G652D | Concentricity error | ≤1um |
| MFD | 8.7～9.7um | Cladding non-circularity | ≤2% |
| Cladding diameter | 125±2um | Fiber color | standard spectrum |
| Loose tube | Material | PBT | Color | Standard spectrum |
| Qty | 4 (24F) | Fiber pre tube | 6 (24F) |
| 6 (72F) | 12 (72F) |
| Copper wire | Qty | 0.6mm2*2 |
| Central strength member | Material | FRP | Diameter | 2.0mm |
| Water blcoking system | Material | Water blocking tape |
| Outer sheath | Material | PE | Color | Black |
| Diameter | 9.2±0.2mm (24F) | Thickness | 1.6±0.1mm |
| 10.8±0.2mm (72F) |
Mechanical and environment performance
| Tensile strength | Long term(N) | 600N |
| Short term(N) | 1500N |
| Crush load | Long term | 300N/100mm |
| Short term | 1000N/100mm |
| Bending radius | Dynamic | 20D |
| Static | 10D |
| Operating Temperature | -20℃～+70℃ |
