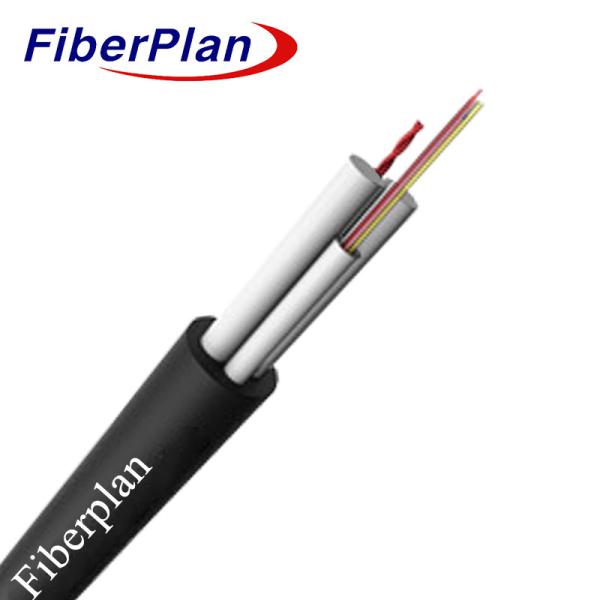

Fiberplan Outdoor Aerial Single Sheath ASU Self Supporting Fiber Optic Cable
Description
The ASU Fiber Optic Cable is highly sought-after in FTTH optical networks due to its engineered flat desi-
gn. It features a G.652D type fiber optic cable, use corning fiber & yofc fiber, ensuring high-performance
data transmission and easy installation. Its design prioritizes cost-effectiveness by reducing installation and
maintenance costs while maintaining reliability. Structurally, it includes a non-core SM optical yofc,corning
fiber rope protected by a secure loose tube. Additionally, two specially crafted components simplify anchoring
and suspension, enhancing resilience and stability in complex network configurations.
Application
1. Adapted for Outdoor Distribution: Designed for outdoor deployment, showcasing resilience and suitability
for various weather conditions and external factors.
2. Trunk Power Transmission Compatible: Capable of managing trunk power transmission systems, indicat-
ing robustness and efficiency in handling high-power transmissions within extensive networks.
3. High Electromagnetic Interference Adaptability: Suited for access and local networks in areas with high
electromagnetic interference, demonstrating the ability to minimize susceptibility to interference and maintain
stable communication in challenging electromagnetic environments.
Characteristic
1. Robust Mechanical & Temperature Performance: Ensures reliable functionality across temperature ranges
and mechanical stress levels for consistent operation.
2. Hydrolysis-Resistant High-Strength Loose Tube: Durable tube structure resistant to hydrolysis, ensuring
longevity even in moisture-prone environments.
3. Specialized Fiber Protection: Dedicated tube filling compound shields fibers, ensuring essential protection
for their longevity.
4. Crush Resistance & Flexibility: Balances strength against pressure with flexibility, ideal for versatile installations.
5. Enhanced Loose Tube Protection: Loose tube filling compound fortifies the cable against environmental
factors.
6. Comprehensive Core Protection: Complete filling of the cable core ensures comprehensive protection,
safeguarding against various external elements for long-term durability.
Cable construction details
| Number of fiber | 2-12core |
| Moisture Barrier | Water blocking Tape |
| Loose tube and Filler elements | material | PBT |
| diameter | 2.2mmФ±0.1mm |
| Central strength member | material | FRP |
| size | 2.0mm±0.2mm |
| Span | 50m~150m |
| Overall cable diameter | 8.0mm±0.5mm |
| Loose tube | material | PBT |
| diameter | Ф2.2(outer/inner) |
| Outer sheath | material | PE |
| diameter | 1.8±0.2mm |
| Cable weight per km | 60kg/km |
Fiber color
| Number of fiber 12 cores per tube | 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Pink | Aqua |
| Color 13~24 will be marked with a black tracer.For black color no need marked black tracer, will use nature color instead. |
Cable Mechanical characteristic
| Items | Description |
| Installation temperature(℃) | -15 ~ +60 |
| Operation temperature (℃) | -40 ~ +70 |
| Min Bending Radius(mm | Long term | 10D |
| short term | 20D |
| Allowable Tensile Strength(N) | Long term | 600 |
| short term | 1500 |
| Crush Load(N/100mm) | Long term | 300 |
| short term | 1000 |
Fiber characteristic
| Fiber style | Unit | SM
G652 | SM
G652D | MM
50/125 | MM
62.5/125 | MM
OM3-300 |
| condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 |
| attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 |
| 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- |
| Dispresion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispresion |
| 1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | |
| Bandwith | 850nm | MHZ.KM | ---- | ---- | ≧400 | ≧160 | Bandwith |
| 1300nm | MHZ.KM | ---- | ---- | ≧800 | ≧500 | |
| Zero dispersion wavelength | nm | 1300-1324 | ≧1302,
≤1322 | ---- | ---- | ≧ 1295,
≤1320 |
| Zero dispresion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- |
| PMD Maximum Individual Fibr | | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 |
| PMD Design Link Value | Ps(nm2*k
m) | ≤0.12 | ≤0.08 | ---- | ---- | ---- |
| Fibre cutoff wavelength λc | nm | ≧ 1180,
≤1330 | ≧1180,
≤1330 | ---- | ---- | ---- |
Cable sutoff
wavelength λcc | nm | ≤1260 | ≤1260 | ---- | ---- | ---- |
| MFD | 1310nm | um | 9.2±0.3 | 9.2±0.3 | ---- | ---- | ---- |
| 1550nm | um | 10.4±0.5 | 10.4±0.5 | ---- | ---- | ---- |
Numerical
Aperture(NA) | | ---- | ---- | 0.200±0.015 | 0.275±0.
015 | 0.200±0
.015 |
Step(mean of bidirectional
measurement) | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 |
Irregularities over fiber
length and point | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 |
| Dicontinuity |
Difference backscatter
coefficient | dB/km | ≤0.05 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | | | |
| Core dimater | um | | | 50±1.0 | 62.5±2.5 | 50±1.0 |
| Cladding diameter | um | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 | 125.0±0.1 |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | um | 242±7 | 242±7 | 242±7 | 242±7 | 242±7 |
Coating/chaffinch
concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 |
| Core/cladding conentricity error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 |
| Curl(radius) | um | ≤4 | ≤4 | ---- | ---- | ---- |
