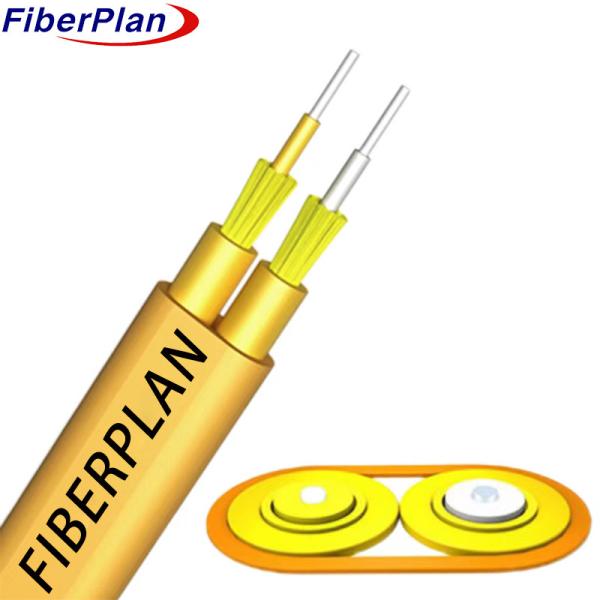

GJFJBV Flat Twin Duplex 2 Core Indoor Optical Cable

Description

This flat twin duplex indoor cable utilizes either 900μm or 600μm flame-retardant tight buffer fiber for optical

communication. The tight buffer fiber is reinforced with aramid yarn as strength member units, and this ass-

embly is extruded with a layer of PVC or LSZH material as the inner jacket. The cable is then finished with a

layer of flat PVC or LSZH jacket, providing a comprehensive outer sheath with low smoke, zero halogen, and

flame-retardant properties.

Application

1 Indoor Distribution: Tailored for indoor applications, this cable is designed to facilitate efficient communication
within buildings.
2 Pigtail Compatibility: Well-suited for use as a pigtail, seamlessly connecting with communication equipment to
ensure reliable performance.
3 Suitable for Communication Equipment: Specifically crafted to meet the requirements of communication equi-
pment, ensuring compatibility and effective service.
4 Convenient Installation: Engineered for easy installation, the cable can be conveniently set up, providing a
straightforward process for various communication applications.

Characteristic

1 Flat Twin Configuration: The cable is structured with two single fibers as the basic unit, arranged in a flat

twin configuration for practical use.

2 0.6 Tight Buffer with Kevlar Yarn: Each single fiber is equipped with a 0.6 tight buffer, reinforced with Kevlar

yarn for enhanced durability and protection.

3 Flexible or Independent Strength Member in Outer Sheath: The outer sheath of the cable features either

flexibility or an independent strength member, providing additional support and resilience.

4 Excellent Mechanical and Environmental Performance: Engineered for superior mechanical and environmental

performance, the cable is designed to withstand various conditions while maintaining reliable functionality.

Standards

* The GJFJV cable aligns with multiple standards such as YD/T1258.2-2003, ICEA-596, GR-409, IEC794, and

others. Additionally, it fulfills the criteria set by UL for OFNR (Optical Fiber Nonconductive Riser) approval.

Cable construction details

Technical Parameters:
Out Diameter(MM)	3.0×5.0			Weight(KG)	56
	3.2×5.6				68
	5.0×8.0				87
Storage temperature(℃)			-20 ~ +60
Min Bending Radius(mm)		Long term	10D
Min Bending Radius(mm)		Short term	20D
Min allowable Tensile Strength(N)		Long term	300
Min allowable Tensile Strength(N)		Short term	800
Crush Load (N/100mm)		Long term	500
Crush Load (N/100mm)		short term	1000

Standard color of fiber and tube

Standard Colour Identification
No.	1	2
Color	Yellow	White

Fiber characteristic

Fiber style		Unit	SM G652	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
attenuation		dB/km	0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispresion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
Dispresion	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwith	850nm	MHZ.KM	----	----	≧400	≧160	Bandwith
Bandwith	1300nm	MHZ.KM	----	----	≧800	≧500
Zero dispersion wavelength		nm	1300-1324	≧1302, ≤1322	----	----	≧ 1295, ≤1320
Zero dispresion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fibr			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*k m)	≤0.12	≤0.08	----	----	----
Fibre cutoff wavelength λc		nm	≧ 1180, ≤1330	≧1180, ≤1330	----	----	----
Cable sutoff wavelength λcc		nm	≤1260	≤1260	----	----	----
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	----	----	----
MFD	1550nm	um	10.4+/-0.8	10.4+/-0.8	----	----	----
Numerical Aperture(NA)			----	----	0.200+/ -0.015	0.275+/-0. 015	0.200+/-0 .015
Step(mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Irregularities over fiber length and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10

Dicontinuity
Difference backscatter coefficient	dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08
Attenuation uniformity	dB/km	≤0.01	≤0.01
Core dimater	um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter	um	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1
Cladding non-circularity	%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter	um	242+/-7	242+/-7	242+/-7	242+/-7	242+/-7
Coating/chaffinch concentrically error	um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
Coating non circularity	%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error	um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)	um	≤4	≤4	----	----	----
