2.0mm 3.0mm Double Sheath G652D Duplex Indoor Fiber Optic Cable

Ask Lasest Price
Brand Name :	Fiberplan
Model Number :	GJFJV duplex cable
Certification :	ISO 9001; TÜV certificate
Price :	Negotiation
Payment Terms :	L/C, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 km per month
Delivery Time :	5~8 work days

Add to Cart

Product Details
Company Profile

2.0mm 3.0mm Double Sheath G652D Duplex Indoor Fiber Optic Cable

2.0mm / 3.0mm Double Sheath G652D Duplex Indoor Fiber Optic Cable

Description

The duplex zipcord cable is designed for optical communication and incorporates key elements for func-

tionality and durability. It utilizes a 900μm tight buffer fiber as the core medium for optical signals. To enh-

ance its strength, aramid yarn is employed as units within the cable. This aramid yarn serves as a robust

support structure, providing resilience against tension and external forces. The cable is then finalized with

a layer of LSZH (Low Smoke Zero Halogen) jacket, serving as the outer sheath. This LSZH jacket offers

flame-retardant properties and emits minimal smoke in the event of a fire, making the cable suitable for

indoor applications where safety and environmental considerations are crucial.

Application

1 Indoor Distribution: Tailored for indoor use, this duplex zipcord cable is designed to facilitate efficient

communication within buildings.

2 Pigtail Compatibility: The cable is well-suited to function as a pigtail, seamlessly connecting with commun-

ication equipment for reliable performance.

3 Communication Equipment Compatibility: Specifically crafted to meet the requirements of communication

equipment, ensuring compatibility and effective service.

4 Convenient Installation: With a design that prioritizes ease of use, this cable can be conveniently installed,

providing a straightforward setup process for various communication applications.

Characteristic

1 High-Strength Kevlar Yarn Member: The cable features a robust construction with high-strength Kevlar yarn,

providing durability and resistance to external forces.

2 High-Quality Tight Buffered or Loose Tube: The cable incorporates either high-quality tight buffered or loose

tube design, ensuring optimal protection for the internal fibers in different environmental conditions.

3 Soft and Easy to Strip: Designed for user convenience, the cable is soft and easy to strip, simplifying the in-

stallation process and enhancing flexibility during setup.

4 Round Construction: With a round construction, the cable is shaped for practicality, allowing for straightforward

handling and installation in various applications.

Standards

* The GJFJV cable aligns with multiple standards such as YD/T1258.2-2003, ICEA-596, GR-409, IEC794, and

others. Additionally, it fulfills the criteria set by UL for OFNR (Optical Fiber Nonconductive Riser) approval.

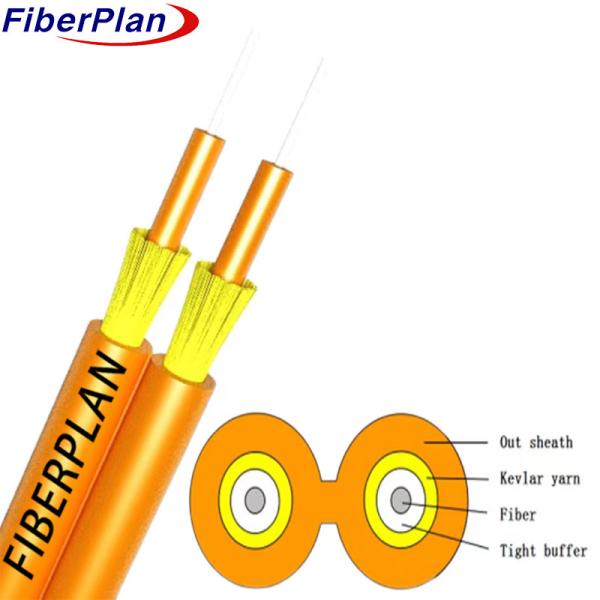

Cable construction details

No. of fiber	2F
SM fiber	Fiber type	Single mode	Concentricity error	≤0.5um
	MFD	8.6～9.8um	Cladding non-circularity	≤0.7%
	Cladding diameter	125±1um	Fiber color	white and blue
Tight buffer	Material	PVC	Color	white
	Diameter	0.9±0.05mm	Thickness	0.32±0.05mm
Yarn	Material	Kevlar yarn	Color	yellow
	Type	1000D	Qty	3 strands/unit
				4 strands/unit
Out sheath	Material	LSZH	Color	yellow
	Diameter	1.9±0.05mmx3.9±0.1 mm	Thickness	0.35±0.05mm
		2.9±0.05mmx5.9±0.1 mm		0.45±0.05mm
Gross weight	8.5±2kg/km (2.0mm)
	15±3kg/km (3.0mm)

Cable mechanical and environment characteristics

Tensile strength	Long term(N)	90 (2.0mm)	120 (3.0mm)
	Short term(N)	150 (2.0mm)	225 (3.0mm)
Crush load	Long term(N)	100N/100mm
	Short term(N)	500N/100mm
Bending radius	Dynamic	20D
	Static	10D
Temperature	-20℃～70℃
