ADSS Cable G652d Single Mode Multi Mode Double Jacket Cable

Description

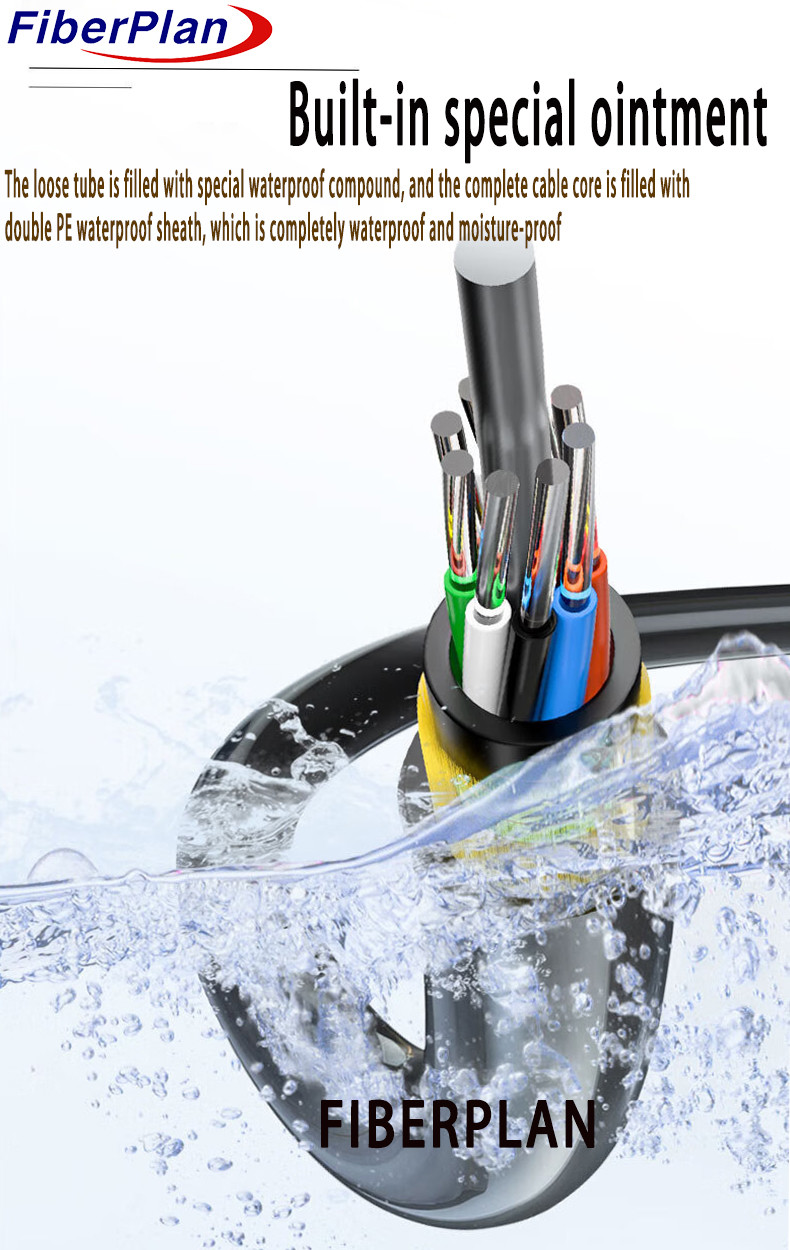

The ADSS cable follows a loose tube stranding design with high modulus plastic tubes housing the fibers

filled with a water-resistant compound. These tubes and fillers encase a non-metallic central strength member,

FRP, forming a compact core. This core, once filled, receives a thin PE inner sheath. Over this, aramid yarns

are stranded for added strength before applying the final PE or AT outer sheath.

Application

1 Tailored ADSS cable design reflects the conditions of overhead power lines.

2 PE outer sheath for lines under 110kV; AT outer sheath for 110kV+ lines.

3 Specific aramid quantity and stranding method meet varied span requirements.

4 Customized cable design considers diverse power line needs.

Characteristics

1 Non-disruptive installation, no need for power shutdown.

2 Lightweight, small diameter minimizes load stress on towers and supports.

3 30-year design life ensures long-term reliability.

4 Excellent tensile strength and temperature resilience.

Nominal design parameters

Fiber characteristics

Dongguan Guanhong Optical Cable Co., Ltd (referred as Fiberplan) is a high-tech enterprise integrating the research, manufacture and marketing of fiber optic cables. Founded in 2016, our company is located in Dongguan City-the national manufacturing center. Fiberplan owns 6 optical cable production lines, mainly manufacturing fiber optic cable, security cable, radio and television cable, power cable and other communication cables.

Fiberplan's business covers the sales of optical transceivers, optical fiber accessories, and is a service-oriented enterprise that integrates optical fiber wiring engineering. Our products are widely used in schools, government operators, highways, border crossings, banks, securities and data cloud computing centers.

Fiberplan controls raw materials and manufacturing processes to ensure stable and reliable of product quality. Our products were exported to more than 150 countries and regions in the Middle East, Africa, Asia, South America, North America & Southeast Asia.

Fiberplan's mainly outdoor optical cable types are ADSS,FTTH,GYTC8S,GYTA53,GYXTW, indoor optical cable types are GJFJV,GJFJH, etc., which endows us with excellent OEM service capabilities, capacity of Fiberplan is 5000 kilometers per month.

Fiberplan adheres to high quality, comprehensive and meticulous service to customers. Continuously contribute our value to the global communication industry, wish to cooperate with you sincerely and stably.
