    Fibra Optica Good Quality ADSS Single Mode Aramid Yarns Fiber Optic Cable

    Fibra Optica Good Quality ADSS Single-Mode Aramid Yarns Fiber Optic Cable


    Description

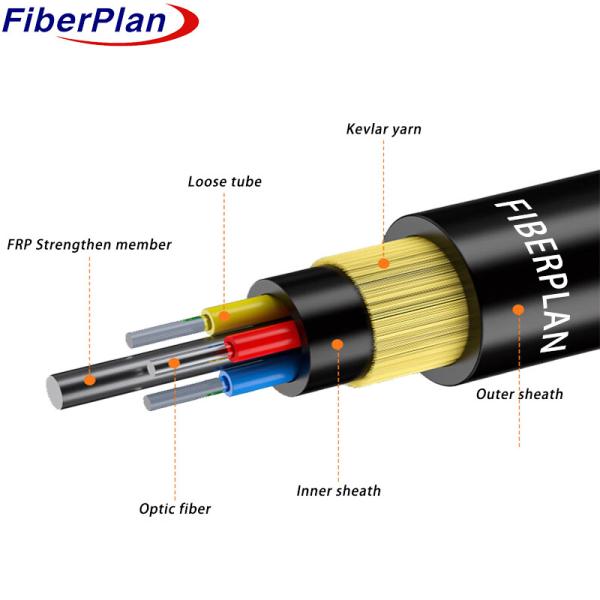

    The ADSS (All-Dielectric Self-Supporting) cable employs loose tube stranding with fibers positioned within

    high modulus plastic tubes filled with a water-resistant compound. These tubes, along with fillers, encircle

    a non-metallic central strength member made of FRP (Fiber Reinforced Plastic), forming a compact circular

    cable core. After filling the cable core with a compound, it's covered by a thin polyethylene (PE) inner sheath.

    Subsequently, a stranded layer of aramid yarns reinforces the inner sheath as a strength component. Finally,

    the cable is completed with either a polyethylene (PE) or anti-tracking (AT) outer sheath.


    Application

    1 ADSS cable design integrates real-time conditions of overhead power lines.

    2 PE outer sheath is used for power lines below 110kV, while AT outer sheath is applied for 110kV and higher.

    3 The specific design of aramid quantity and stranding process meets diverse span requirements effectively.


    Characteristics

    1 Allows installation without requiring power shutdown.

    2 Lightweight and small diameter, reducing stress from ice, wind, tower, and backprop loads.

    3 Designed for a lifespan of 30 years.

    4 Exhibits strong tensile strength and temperature resilience for reliable performance.


    Cable construction details

    Number of fiber24-144 core
    Filling rope2.0mm
    Moisture BarrierWater blocking system
    Central strength membermaterialFRP/FRP with PE
    size2.1mm
    Tube-fillingTube filling compound
    fillerPP tube/ PVC tube
    Inner sheathmaterialPE
    Loose tubematerialPBT
    diameterФ2.2mm(outer/inner)
    Outer sheathmaterialPE/HDPE
    diameter11±0.2mm

    Fiber color

    Number of fiber 8

    cores per tube

    123456
    BlueOrangeGreenBrownGreyWhite
    789101112
    RedBlackYellowVioletPinkAqua
    Color 13~24 will be marked with a black tracer. For black color no need marked black tracer, will use nature color instead.

    Cable Mechanical characteristic

    coreCable diameterWeight
    2 core to 60core11±0.3mm120±4kg/km
    72core12±0.3mm140±4kg/km
    96core13.5±0.2mm170±5kg/km
    144core14.5±0.2mm200±5kg/km
    Rec.daily max working tension88kN
    Max. Allowable working tension32.7KN
    Modulus of elasticity37KN/mm2
    Min Bending Radius(mm)Operation240mm
    Installation390mm
    Extra loadExtra load 0.5% ~ 0.7%
    Ice5mm
    Wind speed35m/s

    Fiber characteristic

    Fiber styleUnitSM
    G652
    SM
    G652D
    MM
    50/125
    MM
    62.5/125
    MM
    OM3-300
    conditionnm1310/15501310/1550850/1300850/1300850/1300
    attenuationdB/km≤3.0/1.0≤3.0/1.0
    0.36/0.230.34/0.223.0/1.0--------
    Dispresion1550nmPs/(nm*km)----≤18--------Dispresion
    1625nmPs/(nm*km)----≤22--------
    Bandwith850nmMHZ.KM--------≧400≧160Bandwith
    1300nmMHZ.KM--------≧800≧500
    Zero dispersion wavelengthnm1300-1324≧1302,
    ≤1322
    --------≧ 1295,
    ≤1320
    Zero dispresion slopenm≤0.092≤0.091------------
    PMD Maximum Individual Fibr ≤0.2≤0.2--------≤0.11
    PMD Design Link ValuePs(nm2*k
    m)
    ≤0.12≤0.08------------
    Fibre cutoff wavelength λcnm≧ 1180,
    ≤1330
    ≧1180,
    ≤1330
    ------------
    Cable sutoff
    wavelength λcc
    nm≤1260≤1260------------
    MFD1310nmum9.2±0.49.2±0.4------------
    1550nmum10.4±0.610.4±0.6------------
    Numerical
    Aperture(NA)
     --------0.200±0.050.275±0.05

    0.200±0.05

    Step(mean of bidirectional
    measurement)
    dB≤0.05≤0.05≤0.10≤0.10≤0.10
    Irregularities over fiber
    length and point
    dB≤0.05≤0.05≤0.10≤0.10≤0.10
    Dicontinuity
    Difference backscatter
    coefficient
    dB/km≤0.05≤0.03≤0.08≤0.10≤0.08
    Attenuation uniformitydB/km≤0.01≤0.01
    Core dimaterum  50±1.062.5±2.550±1.0
    Cladding diameterum125.0±0.05125.0±0.05125.0±0.05125.0±0.05125.0±0.05
    Cladding non-circularity%≤1.0≤1.0≤1.0≤1.0≤1.0
    Coating diameterum242±7242±7242±7242±7242±7
    Coating/chaffinch
    concentrically error
    um≤12.0≤12.0≤12.0≤12.0≤12.0
    Coating non circularity%≤6.0≤6.0≤6.0≤6.0≤6.0
    Core/cladding conentricity errorum≤0.6≤0.6≤1.5≤1.5≤1.5
    Curl(radius)um≤4≤4------------
