Single Armored Single Core Fiber Optical Cable For Indoor

Ask Lasest Price
Brand Name :	Fiberplan
Model Number :	GJFJV Indoor armored cable
Certification :	ISO 9001; TÜV certificate
Price :	Negotiation
Payment Terms :	L/C, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 km per month
Delivery Time :	5~8 work days

Add to Cart

Product Details
Company Profile

Single Armored Single Core Fiber Optical Cable For Indoor

Single Armored Single Core Fiber Optical Cable For Indoor

Descreption

1. Consists of a single fiber with a tight buffer of either Φ900μm or Φ600μm.
2. Features spiral steel armor for added protection.
3. Includes a layer of Kevlar yarn to enhance durability.
4. The cable is completed with a jacket, which can be LSZH, PVC, or OFNR, depending on the specific-

ations.

Applications

1. Primary application in pigtails and patch cords for optical communication.
2. Employed for optical connections within optical communication equipment rooms and optical distribu-

tion frames.
3. Utilized in optical connections within various optical apparatus and equipment settings.

Characteristics

1. Demonstrates favorable mechanical and environmental characteristics.
2. Flame retardant properties adhere to relevant standards.
3. Mechanical attributes align with specified standards.
4. Exhibits a soft, flexible nature, facilitating easy splicing and accommodating large-capacity data trans-

mission.
5. Meets diverse market and client requirements.

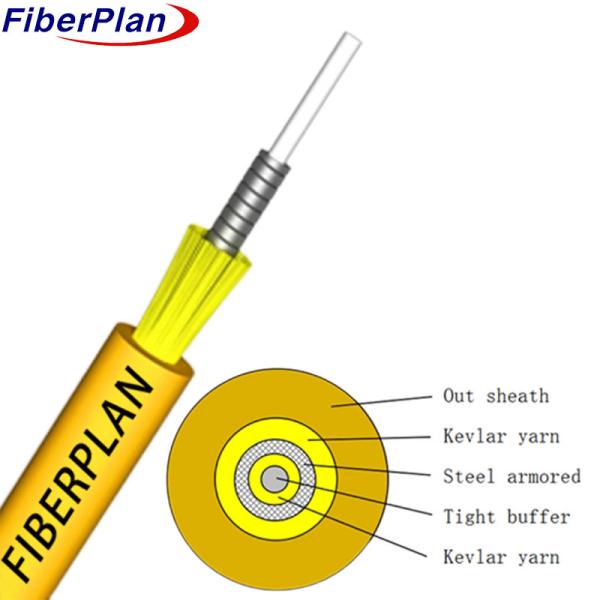

Cable construction details

Technical Parameters
Out Diameter(MM)	2.0			Weight(KG)	15.0
	2.8				18.0
	3.0				18.0
Storage temperature(℃)			-20+60
Min Bending Radius(mm)		Long term	10D
Min Bending Radius(mm)		Short term	20D
Min allowable Tensile Strength(N)		Long term	300
Min allowable Tensile Strength(N)		Short term	1000
Crush Load (N/100mm)		Long term	500
Crush Load (N/100mm)		short term	1000

Fiber characteristic

Fiber style		Unit	SM G652	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
attenuation		dB/km	0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispresion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
Dispresion	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwith	850nm	MHZ.KM	----	----	≧400	≧160	Bandwith
Bandwith	1300nm	MHZ.KM	----	----	≧800	≧500
Zero dispersion wavelength		nm	1300-1324	≧1302, ≤1322	----	----	≧ 1295, ≤1320
Zero dispresion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fibr			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*k m)	≤0.12	≤0.08	----	----	----
Fibre cutoff wavelength λc		nm	≧ 1180, ≤1330	≧1180, ≤1330	----	----	----
Cable sutoff wavelength λcc		nm	≤1260	≤1260	----	----	----
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	----	----	----
MFD	1550nm	um	10.4+/-0.8	10.4+/-0.8	----	----	----
Numerical Aperture(NA)			----	----	0.200+/ -0.015	0.275+/-0. 015	0.200+/-0 .015
Step(mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Irregularities over fiber length and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10

Dicontinuity
Difference backscatter coefficient	dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08
Attenuation uniformity	dB/km	≤0.01	≤0.01
Core dimater	um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter	um	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1
Cladding non-circularity	%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter	um	242+/-7	242+/-7	242+/-7	242+/-7	242+/-7
Coating/chaffinch concentrically error	um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
Coating non circularity	%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error	um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)	um	≤4	≤4	----	----	----
