Kevlar Parellel FRP Strengthen Duct 1 2 4 Core Fiber Optic Cable

Ask Lasest Price
Brand Name :	Fiberplan
Model Number :	GJYXFH03
Certification :	ISO 9001; TÜV certificate
Price :	Negotiation
Payment Terms :	L/C, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 km per month
Delivery Time :	5~8 work days

Add to Cart

Product Details
Company Profile

Kevlar Parellel FRP Strengthen Duct 1 2 4 Core Fiber Optic Cable

Kevlar & Parellel FRP Strengthen Duct 1 2 4 Core Fiber Optic Cable

Description

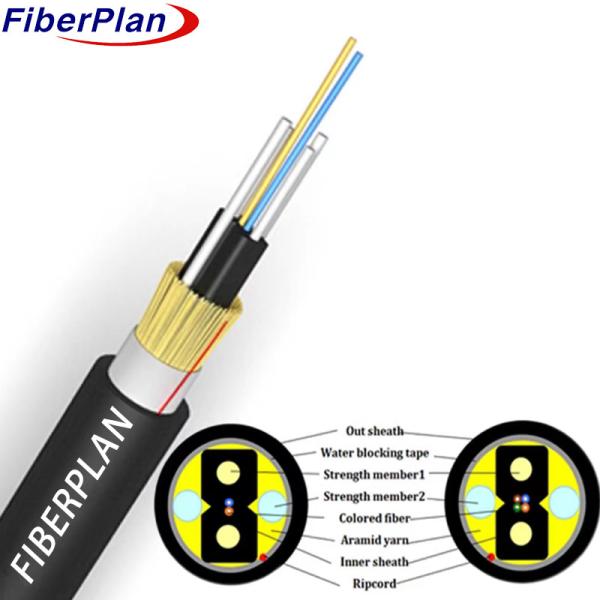

The Bow-type FTTH cable is designed with two KFRP members placed on either side, with the optical fiber

unit positioned in the center. Two parallel strength members, accompanied by aramid yarn, are located at

the sides to protect the interior FTTH. The outer sheath is made of PE, providing additional protection to the

cable.

Application

1 Designed for outdoor level and vertical distribution.
2 Suitable for installation in aerial and duct drop scenarios.
3 Ideal for long-distance and local area network communication applications.

Characteristics

Demonstrates good mechanical and environmental characteristics.
Anti-UV properties meet relevant standards for durability in sunlight.
Mechanical characteristics comply with industry standards.
Supports big capacity data transmission for efficient communication.
Designed to meet diverse requirements of both the market and clients.

Cable construction details

Items		Description
Number of fiber		2cores/4core
Strength member 1	material	KFRP
	diameter	2*0.5mm
Strength member 2	material	FRP
	diameter	2*0.8mm
Inner sheath	material	LSZH
	diameter	1.8±0.2mm
	Color	Black
Outer sheath	material	PE
	diameter	≥1.0mm
	Color	Black
Aramid yarn		Kevlar yarn
Inside Cable size (Height * width)		2.0(±0.1) mm × 3.0(±0.2)mm
Whole Cable sheath		6.5±0.2mm
Cable weight		32KG±1KG

Standard color of fiber and tube

The color of the individual fibers, shall be in accordance with the table as below:

2core Standard Colour Identification
No.	1	2
Color	Blue	Orange

4core

4core Standard Colour Identification
No.	1	2	3	4
Color	Blue	Orange	Green	Brown

Cable Mechanical characteristic

Items		Description
Installation Temperature range		-20 ~ +60℃
Operation and transport temperature		-40 ~ +70℃
Min Bending Radius(mm)	Long term	15D
	short term	30D
Allowable Tensile Strength(N)	Long term	500
	short term	1000
Crush Load (N/100mm)	Long term	500
	short term	1000
Recommended Span (m)		70
Installation sag		1.5%
Max. Wind Speed (m/s)		25
Average Wind Speed (m/s)		10

Fiber characteristic

Fiber style		Unit	SM G652	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
attenuation		dB/km	0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispresion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
Dispresion	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwith	850nm	MHZ.KM	----	----	≧400	≧160	Bandwith
Bandwith	1300nm	MHZ.KM	----	----	≧800	≧500
Zero dispersion wavelength		nm	1300-1324	≧1302, ≤1322	----	----	≧ 1295, ≤1320
Zero dispresion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fibr			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm²*km)	≤0.12	≤0.08	----	----	----
Fibre cutoff wavelength λc		nm	≧ 1180, ≤1330	≧1180, ≤1330	----	----	----
Cable sutoff wavelength λcc		nm	≤1260	≤1260	----	----	----
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	----	----	----
MFD	1550nm	um	10.4+/-0.8	10.4+/-0.8	----	----	----
Numerical Aperture(NA)			----	----	0.200+/ -0.015	0.275+/-0. 015	0.200+/-0 .015
Step(mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Irregularities over fiber length and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10

Dicontinuity
Difference backscatter coefficient	dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08
Attenuation uniformity	dB/km	≤0.01	≤0.01
Core dimater	um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter	um	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1
Cladding non-circularity	%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter	um	242+/-7	242+/-7	242+/-7	242+/-7	242+/-7
Coating/chaffinch concentrically error	um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
Coating non circularity	%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error	um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)	um	≤4	≤4	----	----	----
