Fiber Optic Adapter LC UPC LC UPC FTTH SM MM Fiber Optic Cable
Adapter Simplex Duplex
Description
The Fiber Adapter, also known as a flange or coupling, serves as a
connector for various fiber optic components. This product
comes in a wide range of types, including FC, SC, ST, LC, MTRJ,
allowing for interconnections between different connector
types like ST-SC or FC-ST. It finds extensive application in
optical distribution frames (ODFs), fiber-optic communication
equipment, and instrumentation, providing stable and reliable
connections.

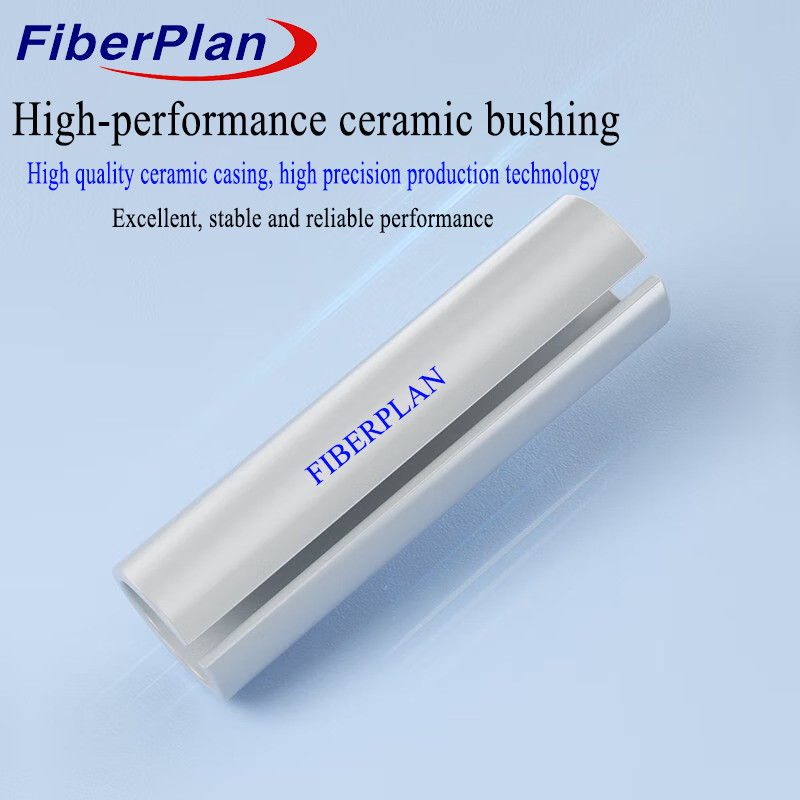

Single-mode adapters typically feature a Ceramic sleeve, while
multimode fiber adapters come with a bronze sleeve. This
distinction in sleeve materials aligns with the respective
requirements of single-mode and multimode fiber connections,
ensuring optimal performance for each type.
Mode | | MM |
Polish | UPC | APC | PC |
Insertion Loss | Typical≤0.2dB Maximum ≤0.3dB | ≤0.25dB |
Return Loss | ≥50dB | ≥65dB | ≥40dB |
Interchangeability | ≤0.2dB |
Durability | ≤0.2dB(1000 times) |
Repeatability | ≤0.1dB |
Temperature | ≤0.2dB(-40~85 sustain 100 hours) |
Application
*Local area networks
*Wide area networks
*Data processing networks
*CATV
*Telecom networks
*Optical test equipments

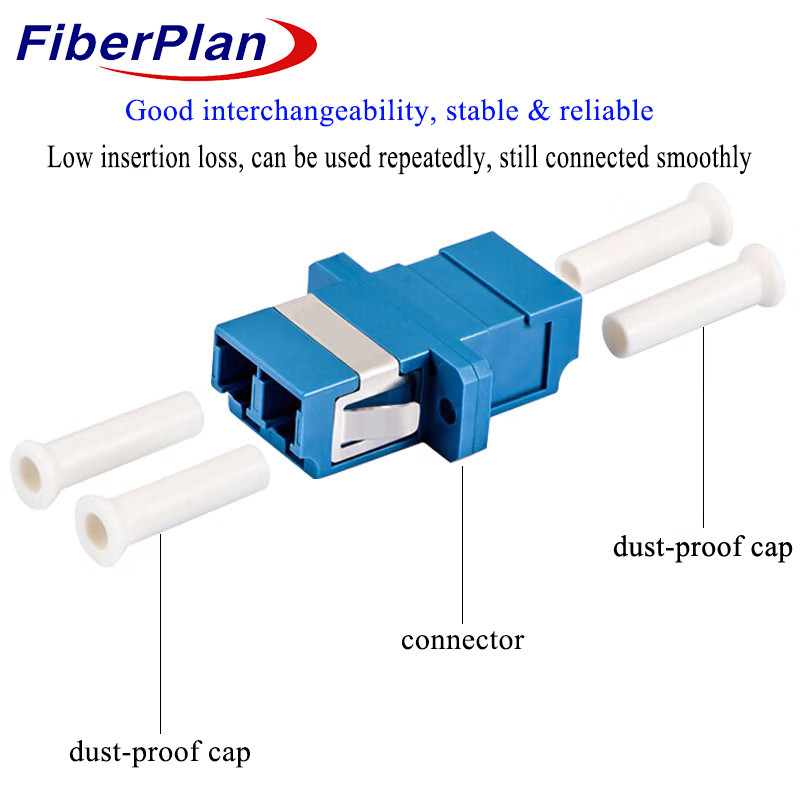

Parts &Material
| Parts | Material | Remarks |
| Sleeve | Zirconia, PB | |
| Housing | PC | Flammability UL94 V-0 |
| Dust cap | PVC | Flammability UL94 V-0 |
| Clip | stailess steel | |
Optical Performance
| Item | Premium Grade | Standard Grade |
| Insertion Loss | ≤0.1dB | ≤0.2dB |
| Durability | 1000 times | 1000 times |
Environment and Mechanical
| Properties | Test condition | Conformance | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | | ≤0.2dB |
| Storage Temperature | -40ºC to +85ºC | | ≤0.2dB |
Order Information
LC/APC-LC/APC-SM-DX-ABS
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT
