    ISO Length 3m OM5 Fiber Optic Patch Cord Duplex Type

    Ask Lasest Price
    Brand Name : Fiberplan
    Model Number : Patch Cord
    Certification : ISO 9001; TÜV certificate
    Price : Negotiation
    Payment Terms : L/C, L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 800 pcs per day
    Delivery Time : 2~3 work days
    • Product Details
    • Company Profile

    ISO Length 3m OM5 Fiber Optic Patch Cord Duplex Type

    ISO Length 3m OM5 Fiber Optic Patch Cord Duplex Type


    Product Details


    NameFiber Optic Patch CordFiber ModelMM ( OM5 )
    ConnectorSC/LC/ST/FC / MPOCable TypeDuplex
    Exchangeability≤ 0.2dBDurablility≥1000 Times
    High Light

    OM5 Fiber Optic Patch Cord

    3m Fiber Optic Patch Cord

    OM5 Fiber Optic Patch Cord


    Product Description

    Fiber Optic Connector Performance Specification

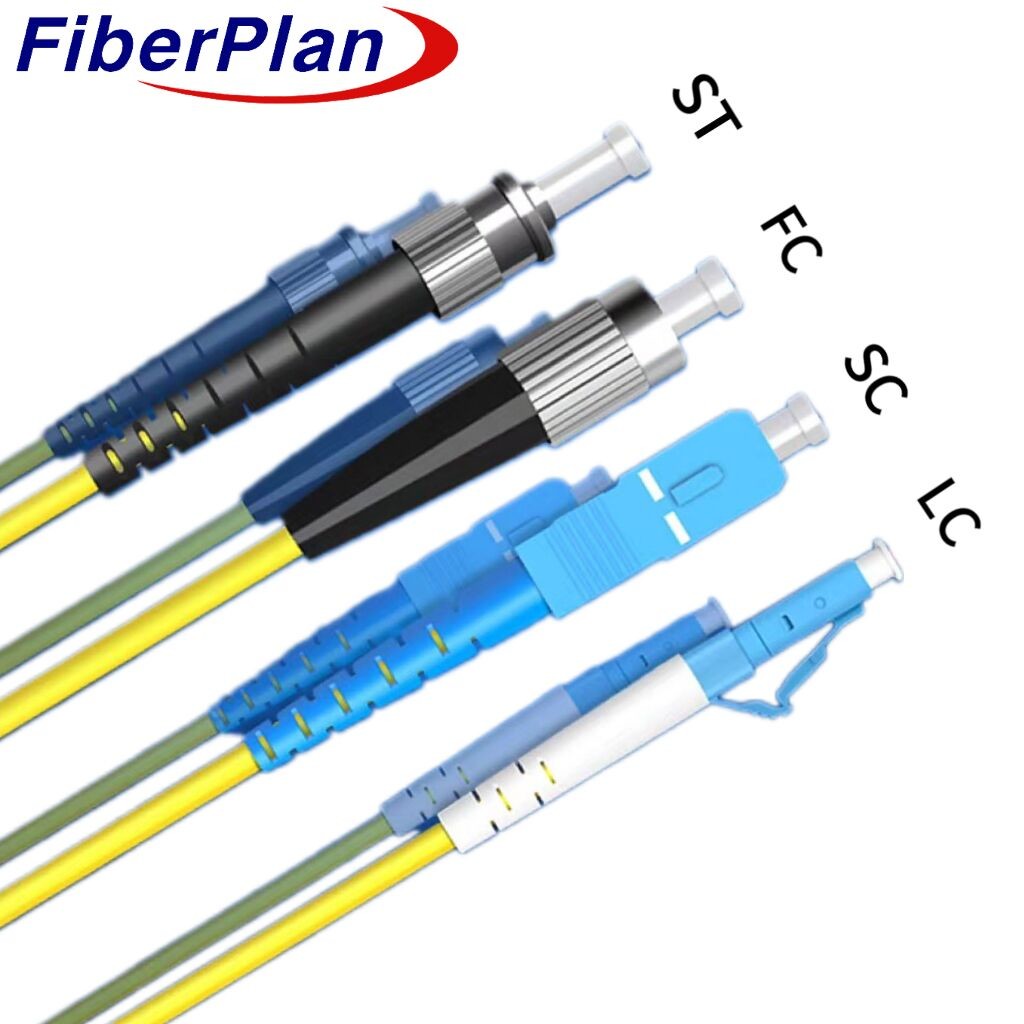

    Connector TypeFC, SC, LC, ST, MU, MTRJ
    Fiber TypeSM(G.652D/G.657A)MM(OM1/OM2/OM3/OM4)
    Ferrule End-facePCUPCAPCUPC
    Insertion Loss≤0.2dB≤0.2dB≤0.3dB≤0.3bB
    Return Loss≥50dB≥55dB≥60dB≥35dB
    Exchangeability≤0.2dB
    Repeatability≤ 0.1dB(1000 times)
    Durability> 1000 times
    Operating Temperature-40°C ~ +85°C

    Fiber Optic Cable Performance Specification

    Fiber typeMin. BandwidthDistanceAttenuation
    62.5/125850/1300nm
    200/500 MHz/Km
    @100Mbps 2km @1Gig 220m850/1300nm
    3.0/1.0dB/km
    50/125850/1300nm
    500/500 MHz/Km
    @100Mbps 2km @1Gig 500m850/1300nm
    3.0/1.0dB/km
    50/125
    10Gig Optimized
    850/1300nm
    2000/500 MHz/Km
    @100Gig Varies by VCSEL typical 300m 2850nm850/1300nm
    3.0/1.0dB/km
    9/1251310/1550nm
    Approx 100 Terahertz
    Up to 100km Varies by transceiver1310/1550nm
    0.4/0.3dB/km

    Order Information

    LC/UPC-SC/UPC-MM-DX-3.0mm-2M
    LC/UPCSC/UPC/SMSX/2.02M
    12324567
    1Connector#1: LC,SC,FC,ST, DIN, D4, MU,MTRJ,etc.
    2Lapping Way: UPC&APC (For MTRJ, F=Female, M=Male)
    3Connector#2: LC,SC,FC,ST,DIN,D4,MU,MTRJ,Pigtail,etc.
    4Cable Type: SM(9/125μm) ,MM(50/125μm & 62.5/125μm), OM3, OM4
    5Fiber Number: SX(Simplex) or DX(Duplex), 2/4/6/8 core...
    6Cable Diameter: 2.0=Ø2.0mm, 3.0=Ø3.0mm, 0.9=Ø0.9mm, etc.
    7Cable Length: 3m(Length in meter)
