Fiber To The Home Aerial Drop Cable Aramid Yarn 2 Core FTTH

Ask Lasest Price
Brand Name :	Fiberplan
Model Number :	FTTH
Certification :	ISO 9001; TÜV certificate
Price :	Negotiation
Payment Terms :	L/C, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 km per month
Delivery Time :	5~8 work days

Add to Cart

Product Details
Company Profile

Fiber To The Home Aerial Drop Cable Aramid Yarn 2 Core FTTH

Fiber To The Home Aerial Drop Cable Aramid Yarn (2core FTTH)

Description

* FTTH Cable for direct connection to homes, with unrestricted bandwidth, wavelength, and transmission

technology.

* Optical fiber unit positioned in the center.

* Two parallel strength members on both sides, supplemented by a steel wire for additional strength.

* Completed with a black HDPE sheath.

Application

FTTH Cable suitable for outdoor level and vertical distribution.
Designed for connection with communication equipment.
Ideal for long-distance and local area network communication.

Characteristic

Exhibits good mechanical and environmental characteristics.
Anti-UV properties meet the requirements of relevant standards.
Mechanical characteristics conform to relevant standards.
Soft, flexible, easy to lay and splice, with significant capacity for data transmission.
Meets various requirements of the market and clients.

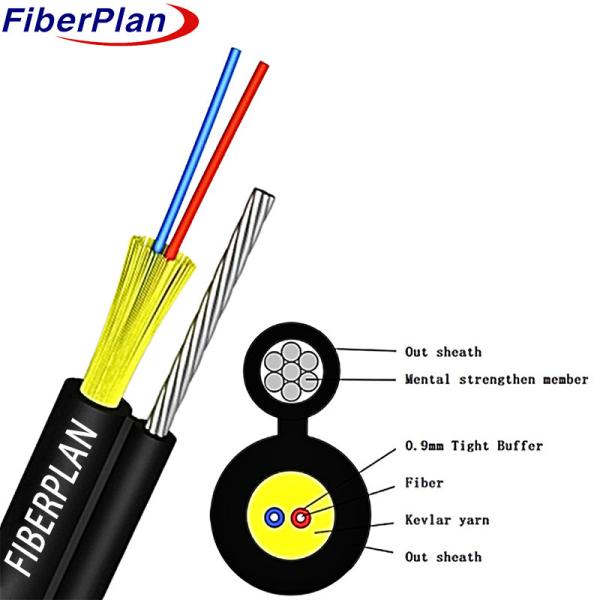

Cable construction details

Items			Description
Number of fiber			2cores
Fiber	type		G657A tight buffer
	diameter		250µm
Strength member	materia		Kevlar yarn
Self support Messenger wire	material		Steel wire
	diameter		1.2mm Steel wire
Outer sheath	material		LSZH
	diameter		1.8±0.2mm
Cable size (Height * width)			3.5 mm × 6.5mm
Cable weight			26KG±1KG
Installation Temperature range(℃)			-20+60
Operation and transport temperature(℃)			-40+70
Min Bending Radius(mm)		Long term	15D
Min Bending Radius(mm)		Short term	30D
Min allowable Tensile Strength(N)		Long term	500
Min allowable Tensile Strength(N)		Short term	700
Crush Load (N/100mm)		Long term	500
Crush Load (N/100mm)		short term	1000

Standard color of fiber and tube

Standard Colour Identification
No.	1	2
Color	Blue	Orange

Fiber characteristic

Fiber style		Unit	SM G652	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
attenuation		dB/km	0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispresion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
Dispresion	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwith	850nm	MHZ.KM	----	----	≧400	≧160	Bandwith
Bandwith	1300nm	MHZ.KM	----	----	≧800	≧500
Zero dispersion wavelength		nm	1300-1324	≧1302, ≤1322	----	----	≧ 1295, ≤1320
Zero dispresion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fibr			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*k m)	≤0.12	≤0.08	----	----	----
Fibre cutoff wavelength λc		nm	≧ 1180, ≤1330	≧1180, ≤1330	----	----	----
Cable sutoff wavelength λcc		nm	≤1260	≤1260	----	----	----
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	----	----	----
MFD	1550nm	um	10.4+/-0.8	10.4+/-0.8	----	----	----
Numerical Aperture(NA)			----	----	0.200+/ -0.015	0.275+/-0. 015	0.200+/-0 .015
Step(mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Irregularities over fiber length and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10

Dicontinuity
Difference backscatter coefficient		dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08
Attenuation uniformity		dB/km	≤0.01	≤0.01
Core dimater		um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter		um	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1
Cladding non-circularity		%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter		um	242+/-6	242+/-6	242+/-6	242+/-6	242+/-6
Coating/chaffinch concentrically error		um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
Coating non circularity		%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error		um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)		um	≤4	≤4	----	----	----
