Figure 8 Double Jacket Double Armored Fiber Optic Cable GYTC8S53

    Buy cheap Figure 8 Double Jacket Double Armored Fiber Optic Cable GYTC8S53 from wholesalers

    Buy cheap Figure 8 Double Jacket Double Armored Fiber Optic Cable GYTC8S53 from wholesalers
    • Buy cheap Figure 8 Double Jacket Double Armored Fiber Optic Cable GYTC8S53 from wholesalers

    Figure 8 Double Jacket Double Armored Fiber Optic Cable GYTC8S53

    Ask Lasest Price
    Brand Name : Fiberplan
    Model Number : GYTC8S53
    Certification : ISO 9001; TÜV certificate
    Price : Negotiation
    Payment Terms : L/C, L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000 km per month
    Delivery Time : 5~8 work days
    • Product Details
    • Company Profile

    Figure 8 Double Jacket Double Armored Fiber Optic Cable GYTC8S53

    Figure 8 Double Jacket Double Armored Fiber Optic Cable GYTC8S53

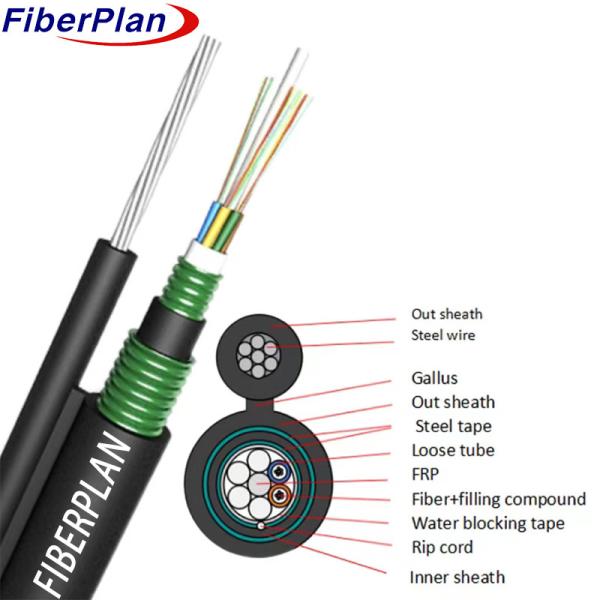

    Description

    The cable construction involves arranging fibers within a loose tube of high modulus plastic, filled with a

    water-resistant compound. A non-metallic FRP serves as the central strength member in the core. The

    tubes, along with fillers, form a compact circular cable core around the strength member. Following this,

    a corrugated steel tape is applied, and an inner sheath is added. Subsequently, a layer of PSP is introd-

    uced around the inner sheath. This section, accompanied by stranded wires as the supporting component,

    is then completed with a polyethylene (PE) sheath, creating a figure 8 structure. This design is specifically

    tailored for self-supporting aerial installations, ensuring durability and functionality in various conditions.


    Application

    * Well-suited for trunk power transmission systems, ensuring efficient and reliable power distribution over

    long distances.

    * Ideal for deployment in access networks and local networks located in areas with high levels of electro-

    magnetic interference, providing robust and interference-resistant connectivity.


    Characteristics

    * Exhibits excellent flexibility and bending performance, adapting easily to various installation conditions.

    * Features a small outer diameter and lightweight design, facilitating easy and convenient installation.

    * Ensures 100% cable core filling, providing comprehensive protection and support for the optical fibers

    within the cable.


    Structure details

    Fiber count24F
    SM fiberFiber typeG652Dcore concentricity
    erro
    ≤0.3um
    MFD8.6~9.8umcladding
    non-circularity
    ≤0.7%
    Cladding diameter124.8±0.5umFiber coloreStandard spectrum
    Loose bufferMaterialPBTColorblue white yellow
    Diameter1.75±0.05mmThickness0.35±0.05mm
    Filler rodMaterialPPColorwhite
    Diameter1.65Qty4
    Strength memberDiameterbright steel wireDiameterΦ1.85
    Water blocking systemMaterialwater blocking tape
    Inner sheathMaterialPE+steel tapeColorblack
    Diameter7.8±0.2mmThickness0.8±0.1mm
    Rip cordSpecWhite 1110D*2Qty1
    GallusMaterialbright steel stranded wireSpec1.0*7-3.0mm
    Out sheathMaterialPE+steel tapeColorblack
    Diameter6.0±0.2*11.9±0.5
    -19.7±0.5
    Thickness1.6±0.2

    Mechanical and environment performance

    Tensile strengthShort term(N)6000N
    Long term(N)2000N
    Crush loadShort term(N)3000N/100mm
    Long term(N)1000N/100mm
    Bending radiusDynamic20D
    Static10D
    Temperature-20℃~+70℃

    Fiber Performance

    Fiber typeUnitSM G652DMM 50/125MM 62.5/125
    Conditionmm1310/1550850/1300850/1300
    AttenuationdB/km≤0.36/0.24≤3.0/1.5≤3.0/1.5
    Cladding diameterum125±1125±1125±1
    Cladding non-circularity%≤1.0≤1.0≤1.0
    Coating diameterum242±7242±7242±7
