    Aramid Yarn Reinforing Overhead Fibra Optic Cable 4 6 8 12 24 Core

    Ask Lasest Price
    Brand Name : Fiberplan
    Model Number : GYFTY
    Certification : ISO 9001; TÜV certificate
    Price : Negotiation
    Payment Terms : L/C, L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000 km per month
    Delivery Time : 5~8 work days
    • Product Details
    • Company Profile

    Aramid Yarn Reinforing Overhead Fibra Optic Cable 4 6 8 12 24 Core

    Aramid Yarn Reinforing Overhead Fibra Optic Cable 4 6 8 12 24 Core

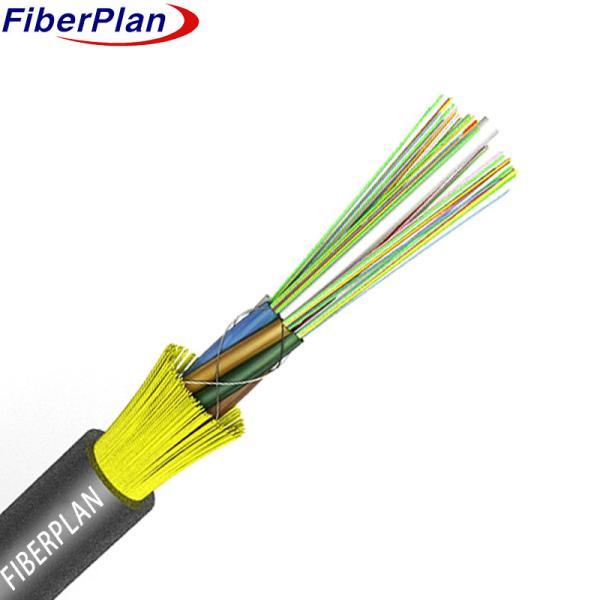

    Description

    Thin fibers placed within a flexible tube made of durable, high-modulus plastic, filled with a water-resistant

    compound. At the core sits a Fiber Reinforced Plastic (FRP) serving as a non-metallic strength component.

    The tubes and fillers are wound around this core, forming a compact and circular structure. Filling gel is used

    to safeguard the cable core against water ingress. Kevlar yarn reinforces the cable core, followed by enclosing

    the cable with a PE sheath for protection.


    Application

    1. Designed for outdoor distribution applications.
    2. Suitable for trunk power transmission systems.
    3. Ideal for use in access and local networks located in areas with high levels of electromagnetic interference.

    Characteristic

    1. Demonstrates excellent mechanical strength and performs reliably across various temperatures.
    2. Features a high-strength, hydrolysis-resistant loose tube.
    3. Utilizes a specialized tube filling compound to provide crucial protection for the fiber.
    4. Shows both crush resistance and flexibility.
    5. Employs a filling compound specifically designed for the loose tube.
    6. Ensures complete filling of the cable core for comprehensive protection.

    Structure details

    No. of fiber6F12F24F36F48F72F96F144F
    No. of tube124346812
    Fiber per tube6661212121212
    No. of filler rod43121000
    Tube diameter (±0.1mm)2.02.02.02.02.02.02.02.0
    Thickness of loose tube
    (±0.05mm)
    0.30.30.30.30.30.30.30.3
    Nom. out diameter (±0.2mm)8.68.68.68.68.69.210.813.4
    Nom. jacket thickness
    (±0.1mm)
    1.61.61.61.61.61.61.71.7
    Loose tubeMaterialPBTColorStandard spectrum
    Filler rodMaterialPPColorBlack
    Tube fillingMaterialFilling compound
    Central strength memberMaterialFRPDiameter1.5mm (6 - 48F)
    2mm (72 - 144F)
    LayerPE (for 96C -144C only)
    Water blcoking systemMaterialwater blocking tape
    Rip cordType1110*2
    Out sheathMaterialMDPEColorBlack

    Mechanical and environment performance

    Tensile strengthLong term(N)600N
    Short term(N)1500N
    Crush loadLong term (N/100mm)300N/100mm
    Short term (N/100mm)1000N/100mm
    Bending radiusDynamic (mm)20D
    Static (mm)10D
    Storage Temperature-20℃~+70℃
    Installation Temperature-10℃~+60℃

    Fiber Performance

    Fiber styleUnitSM G652DMM 50/125MM 62.5/125
    Conditionmm1310/1550850/1300850/1300
    AttenuationdB/km≤0.36/0.22≤3.0/1.0≤3.0/1.0
    Cladding diameterum125±0.2125±0.2125±0.2
    Cladding non-circularity%≤1.0≤1.0≤1.0
    Coating diameterum242±3242±3242±3

    Aramid Yarn Reinforing Overhead Fibra Optic Cable 4 6 8 12 24 CoreAramid Yarn Reinforing Overhead Fibra Optic Cable 4 6 8 12 24 Core

    Aramid Yarn Reinforing Overhead Fibra Optic Cable 4 6 8 12 24 Core
