Single Sheath Outdoor Aerial Fiber Optic All Dielectric Self Supporting Cable ADSS

Ask Lasest Price
Brand Name :	Fiberplan
Model Number :	ADSS
Certification :	ISO 9001; TÜV certificate
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000Km per month
Delivery Time :	5-8 work days
Price :	Negotiation

Add to Cart

Product Details
Company Profile

Single Sheath Outdoor Aerial Fiber Optic All Dielectric Self Supporting Cable ADSS

Single Sheath Outdoor Aerial Fiber Optic All-Dielectric Self-Supporting Cable

ADSS

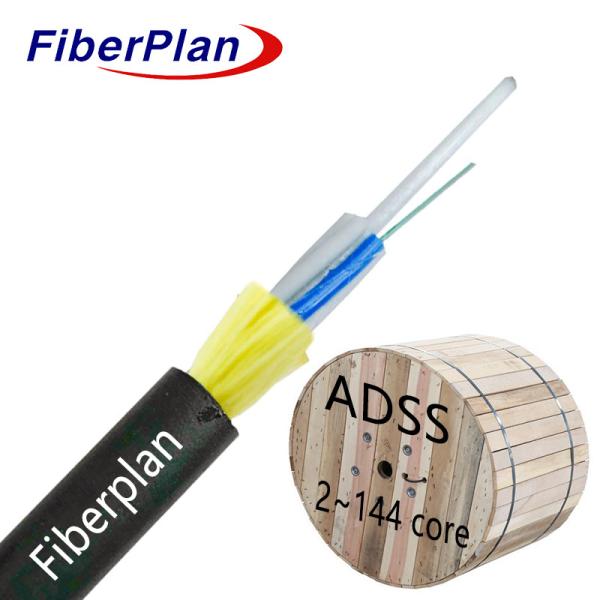

Description

The cable features high modulus plastic tubes housing the fibers, filled with a water-resistant compound.

Surrounding this, a layer of Kevlar provides additional protection. A water-blocking material is applied between

the Kevlar yarn and the loose tube, ensuring a compact and waterproof structure. To finalize its design, the

cable is enveloped in a durable polyethylene (PE) sheath, safeguarding it against external elements.

Application

This specification outlines the general prerequisites for single jacket ADSS (All-Dielectric Self-Supporting) cables

suitable for aerial or duct installations.

Characteristics

* Exceptional mechanical and temperature performance.

* Hydrolysis-resistant, high-strength loose tube.

* Specialized tube filling compound for crucial fiber protection.

* Crush resistance combined with flexibility.

* Tensile strength supported by dual parallel steel wires.

* Compact size, lightweight build, and easy installation for user convenience.

Cable construction details

Number of fiber	2-144core
Moisture Barrier	Water blocking Tape
Loose tube and Filler elements		material	PBT
		diameter	2.2mmФ+-0.2mm
Central strength member		material	FRP
		size	2.0mm+-0.2mm
Yarn		Dupont Kelver yarn ( 6pcs)
Span		50m~150m
Overall cable diameter		15.0mm+-0.5mm
Loose tube		material	PBT
		diameter	Ф2.2(outer/inner)
Cable weight per km		75kg/km
Outer sheath		material	PE
		diameter	1.8±0.2mm
Cable weight per km		75kg/km

Fiber color

Number of fiber 12 cores per tube	1	2	3	4	5	6
	Blue	Orange	Green	Brown	Grey	White
	7	8	9	10	11	12
	Red	Black	Yellow	Violet	Pink	Aqua
Color 13~24 will be marked with a black tracer.For black color no need marked black tracer, will use nature color instead.

Cable Mechanical characteristic

Items		Description
Installation temperature(℃)		-15+60
Operation temperature (℃)		-40+70
Min Bending Radius(mm	Long term	10D
	short term	20D
Allowable Tensile Strength(N)	Long term	600
	short term	1500
Crush Load(N/100mm)	Long term	300
	short term	1000

Fiber characteristic

Fiber style		Unit	SM G652	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
attenuation		dB/km	0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispresion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
Dispresion	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwith	850nm	MHZ.KM	----	----	≧400	≧160	Bandwith
Bandwith	1300nm	MHZ.KM	----	----	≧800	≧500
Zero dispersion wavelength		nm	1300-1324	≧1302, ≤1322	----	----	≧ 1295, ≤1320
Zero dispresion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fibr			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*k m)	≤0.12	≤0.08	----	----	----
Fibre cutoff wavelength λc		nm	≧ 1180, ≤1330	≧1180, ≤1330	----	----	----
Cable sutoff wavelength λcc		nm	≤1260	≤1260	----	----	----
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	----	----	----
MFD	1550nm	um	10.4+/-0.8	10.4+/-0.8	----	----	----
Numerical Aperture(NA)			----	----	0.200+/ -0.015	0.275+/-0. 015	0.200+/-0 .015
Step(mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Irregularities over fiber length and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10

Dicontinuity
Difference backscatter coefficient	dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08
Attenuation uniformity	dB/km	≤0.01	≤0.01
Core dimater	um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter	um	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1
Cladding non-circularity	%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter	um	242+/-7	242+/-7	242+/-7	242+/-7	242+/-7
Coating/chaffinch concentrically error	um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
Coating non circularity	%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error	um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)	um	≤4	≤4	----	----	----

Single Sheath Outdoor Aerial Fiber Optic All Dielectric Self Supporting Cable ADSS
